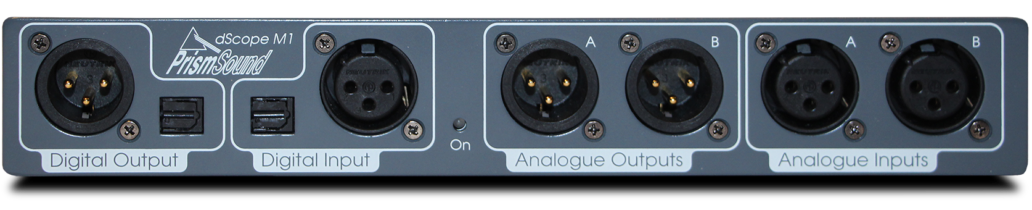

The dScope M1 comes in 4 model variants:
  • M1
  • M1E
  • M1HP
  • M1D

The M1 and M1E have exactly the same hardware, but the M1 comes with more software options by default. The M1E can be upgraded to the same level also later.

In our M1 configurator the M1E model is basically the unit without any additional options. The M1 model can be selected by choosing the “M1 bundle” option. Selecting the M1 bundle saves you some money compared to buying the options individually for the M1E.

Generally we recommend the M1 or M1E for most customers and that is why only these models are available in the configurator tool.

Configure now

The M1HP and M1D models would be recommended in the case that 600 Ohm input/output impedanced are absolutely necessary. Please contact us if you are interested in these models.

M1HP differs from the M1/M1E in the following ways:

  • Also 600Ohm input/output impedances
  • No Phantom power +48V / CCP
  • Max Generator output on analog outputs: 28dBu – Minimum load 2kohm

M1D differs from the M1/M1E in the following ways:

  • Also 600Ohm input/output impedances
  • No Phantom power +48V / CCP
  • No software options available
