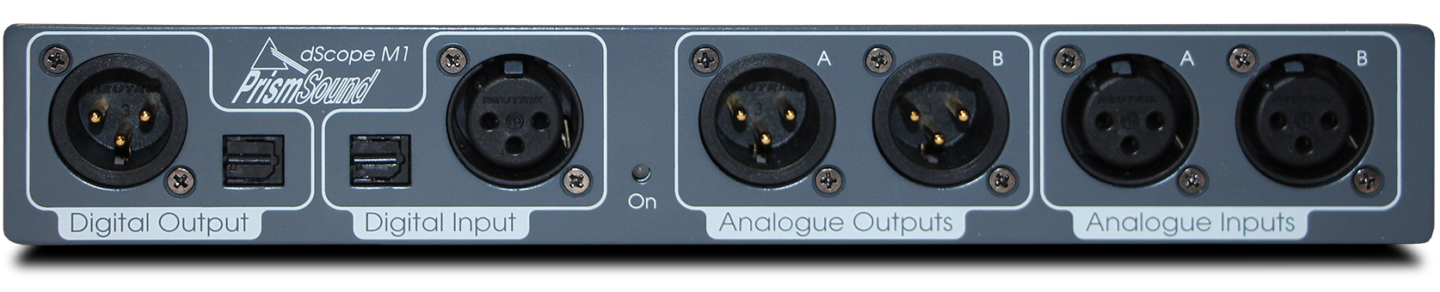

New dScope M1 audio analyzer


We've combined future audio trends with over 40 years of audio test & measurement experience to build an instrument for all your measurement needs.

All essential measurements like THD+N, noise, crosstalk, sweeps, impulse response plus simple code free test automation and additional modules for advanced features.

Configure options and view pricing

Want to try out the software? The dScope M1 software runs in demo mode.

Download software

NEW CAPABILITIES

  • Phantom power 48V / CCP
  • Integrated I2S and GPIO

NEW TECHNOLOGY

  • THD+N residual -110 dB
  • Sampling rates up to 768 kHz

NEW LOW PRICE

  • Starting at 2495 GBP / 3395 US
  • Modular software - modular price
  • Analogue I/O (48kHz/96kHz/192kHz)
  • Digital I/O (max 192kHz)
  • Sound Card I/O (ASIO/WDM devices)
    • Bluetooth, Dante, MADI
  • Signal Analyzer (Amplitude/Frequency/Phase)
  • Signal Generator (Sine, White/Pink noise, Swept sine, Twin-tone)
  • Basic AES3 Channel Status
  • Simultaneous time and frequency domain measurements:
    • THD+N, THD, individual/odd/even harmonics, IMD (CCIF / SMPTE-DIN)
    • Cross-talk, Balance, Gain, Noise
    • Standard and user weighting filters
  • FFT Analysis with Smart FFT Detectors
  • Sweeps
  • Impulse Response Tests
  • Scripting
  • Code free test automation and report generation (Excel/PDF/HTML)
  • External control via ActiveX (C++, Python, LabView, Matlab etc.)
dScope M1 audio test & measurement
  • THD+N residual typical -108 to -110dB
  • Phantom power, User selectable +48V OR CCP
  • 100k input impedance
  • Switchable Output impedances: 50R, 150/200R
  • Maximum Generator level on Analog Outputs: 26dBu
  • Maximum level on Analog Inputs: 100Vrms balanced, 50Vrms unbalanced

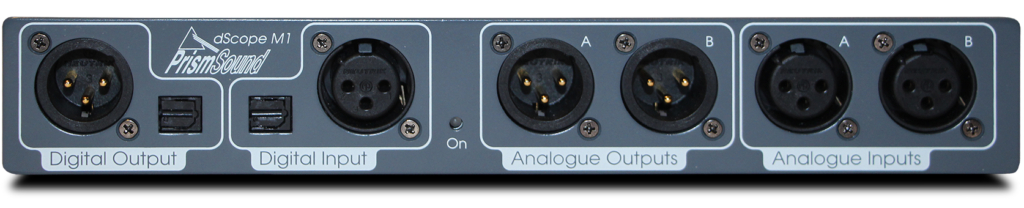

  • Analog I/O: XLR (balanced/unbalanced)
  • Digital I/O: S/PDIF TOSLINK and AES3 XLR
  • Wordclock sync I/O for Digital Outputs
  • USB connection to PC
  • 230 x 180 x 36mm, 1U mounting kit available
  • 1.3kg
  • Universal 12V adaptor included
dScope M1 audio test & measurement

See the full details and pricing in the configurator

  • High Performance THD+N residual
  • Analog input sampling rate up to 768kHz (>200kHz Bandwidth)
  • Extended signal generation functions
  • Extended Sweep functions
  • Regulation
  • Scripted Smart FFT Detectors
  • 40x Smart FFT Detectors
  • Multi-tone generation and analysis
  • Event Manager
  • dS-Net Switcher control
  • Port access from scripts
  • Digital Channel status - full access
  • Digital carrier analysis
  • Integrated GPIO control
  • Integrated VSIO for I2S
Configure options and view pricing
dScope M1 audio test & measurement

Would you like to have a personal online demo?

Leave your contact details in the chat window on the bottom-right corner and we'll get back to you to discuss your audio test & measurement needs.
